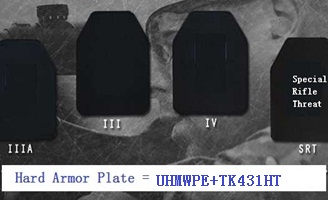

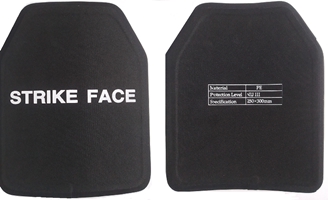

Hard Armor plate















We offer several type of Hard Armor plates capable of defeating high-powered Level III.

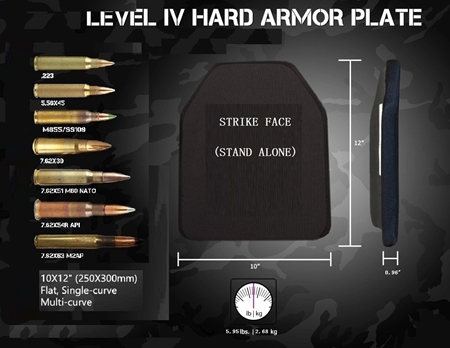

Sizes Available: 10”×12”

Curvature: Flat, Single – Curve, Multi - Curve

Construction: Polyethylene + AT Flex UD for reducing trauma

Thickness: 0.98”

Weight : 3 Ibs ( 1.35 kg )



Key features

* Made with Multi- UHMWPE fabrics + AT Flex UD and special pressing techniques to create lighter plate

* Fully sealed to protect against liquids,chemicals,and harsh elements

* User-friendly design fits to the body curve and maximizes safety

* Rugged, reliable,and stress fracture resistant





BALLISTIC PERFORMANCE Round defeated

7.62mm×51 mm ( M80 ) (M-14)

UHMWPE+AT Hard Armor Plate Shot Test



Basic information

Item:ZLJ-4 ( UHMWPE + AT Flex UD )

Weight:1.35 kg

Size:250×300mm

Shot time:2019.12.27

Protection:NIJ III (7.62mm×51 M80(M14);9.6g;838m/s

Testing Unit:Test Center of Ordnance and Equipment Research Institute,China Ordnance and Equipment Group





Shot Over Photos



 Test Result

Item

Single Shot Over Data

Avg.

Pitting 44mm

20.4

30.1

31.7

27.6

34.8

29.4

29.0

Pitting (%)

46.4

68.4

72.0

62.7

79.1

66.8

65.9
